Hori-Drain® is manufactured by DAEHAN i.m. a trusted horizontal drain manufacturer specializing in advanced geosynthetic drainage systems for civil engineering, infrastructure, and land development projects worldwide.
What is Hori-Drain®?
Hori-Drain® is a high-performance horizontal drain system designed for efficient groundwater drainage and soft ground improvement applications. It is engineered to improve soil stability, reduce excess pore water pressure, and support long-term infrastructure performance in challenging geotechnical environments.
What is a horizontal drain system?
A horizontal drain system is designed to collect and discharge groundwater or excess pore water horizontally from soil layers. It helps improve soil stability, accelerate drainage, and prevent water accumulation in construction and ground improvement projects.
Applications of Hori-Drain®
Hori-Drain® is an advanced horizontal drainage system designed to replace conventional drainage layers made of natural materials such as sand or gravel in soil improvement and drainage works.
Main Applications

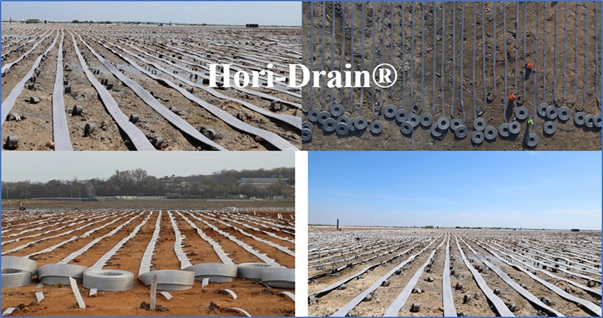

Replacement of sand or gravel drainage layers for soft ground improvement
Land development projects for roads, railways, airports, and seaports
Rainwater drainage systems
Drainage of embankment slopes and dissipation of water pressure
Back-wall drainage for retaining walls and concrete structures
Advantages of Hori-Drain®Workability & Economic Efficiency
Eco-friendly technology that reduces or replaces the use of natural aggregates
High economic efficiency with construction cost reductions of more than 30%
Stable factory production ensures reliable supply and minimizes construction delays caused by material shortages
Easy installation by manual labor without the need for heavy equipment
Performance & Drainage Capacity
Special 山-shaped core structure prevents filter intrusion into water channels under surcharge loading
High drainage capacity exceeding 3,500 cm³/s under a load of 500 kPa
Open-channel structure provides excellent drainage efficiency with an effective water collection area of at least 80%
Outstanding load dispersion performance for improved structural stability
